Solid CBN

规格型号：
Category
PCBN Blanks For Cutting Tools
SFD CBN, with characteristic of high hardness, high wear resistance and high thermal stability, is made of selected CBN powder and sintered at high pressure and high temperature, with metals or ceramic binders. BN series is solid CBN.
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Quantity
-
+
Stock:
0
Advisory
1
Product description
Parameters

Description

SFD CBN, with characteristic of high hardness, high wear resistance and high thermal stability, is made of selected CBN powder and sintered at high pressure and high temperature, with metals or ceramic binders. BN series is solid CBN.



Application

SFD CBN is ideal for tools in machining of high hardness and hard processed ferrous materials (HRC45-65), such as hardened steel, gray cast iron, heat resistant alloy, high-speed steel, hard facing alloys, Ni-Cr alloy, powder metallurgy metals. CBN is typically used to machine brake discs, engine blocks, engine cylinder liners, brake drums, flywheels, valve seats and guides, gears, mold and die parts, etc.



Specification

Solid CBN disc
Disc Diameter(D) Thickness (T) Grade Available
Solid PCBN 48 3.2/4.76 BN960, BN900
BN720, BN500

Solid CBN semi-finished inserts
Shape ISO Dimensions (mm) Grade Available
IC Thickness (T)

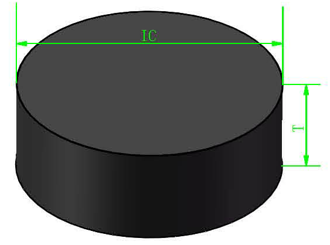

Rounds RNUN-0903XX 9.8 3.2 BN960, BN900
BN720, BN500
Solid PCBN RNUN-0904XX 9.8 4.8
RNUN-1203XX 13.1 3.2
RNUN-1204XX 13.1 4.8
RNUN-1207XX 13.1 7.94
RNUN-1507XX 16.2 7.94
RNUN-1904XX 19.4 4.8
RNUN-2004XX 20.7 4.76
RNUN-2504XX 25.7 4.8

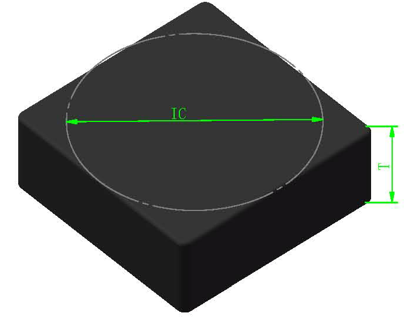

Squares SNUN-0903XX 9.8 3.2 BN960, BN900
BN720, BN500
Solid PCBN SNUN-0904XX 9.8 4.8
SNUN-1203XX 13.1 3.2
SNUN-1204XX 13.1 4.8
SNUN-1207XX 13.1 7.94
SNUN-1504XX 16.2 4.8
SNUN-1904XX 19.4 4.76
Rhombus CNUN-0903XX 9.8 3.2 BN960, BN900
BN720, BN500
Solid PCBN CNUN-0904XX 9.8 4.8
CNUN-1203XX 13.1 3.2
CNUN-1204XX 13.1 4.8
Triangles TNUN-1103XX 6.6 3.2 BN960, BN900
BN720, BN500
Solid PCBN TNUN-1603XX 9.8 3.2
TNUN-1604XX 9.8 4.8



Advantage

1. Multiple grades of CBN blanks and wide range of application

2. High cost-effective, Easy Processing, Good performance, High wear resistance, Consistence

3. Strong technical support, Customized R&D CBN and service

4. Strict quality management system to guarantee the consistent quality

5. Short lead time: 1-2 days for CBN Disc. 3-4 days for 10,000 pieces of CBN tips



Application Area

SF-Diamond CBN (polycrystalline cubic boron nitride) is ideal for tools used to machine hard ferrous metal items (HRC45-65) such as high speed steel, bearing steel, cast iron,etc.

It’s typically used to machine brake discs, engine blocks, engine cylinder liners, brake drums, flywheels, valve seats and guides, gears, mold and die parts etc.The surface finish of the workpiece is good, which can replace grinding with turning, greatly improve labor efficiency and effectively reduce production costs.
